MetaDAO Launchpad Query Notes (Dune/ TrinoSQL)

While building the MetaDAO dashboard at Blocmates, @563defi and I spent some time digging into MetaDAO’s launchpad program to understand the existing Dune queries, build on them, and create new ones.

These are my notes, which I will be referring back to as I verify & build out more queries on MetaDAO’s activity. This can also be used as context to feed to an LLM for generating simple queries.

Hopefully this helps you understand the program structure and verify your queries are pulling the right data.

Overview

MetaDAO uses the launchpad program to run token presales. Users commit USDC, and after the raise closes, they claim their token allocation (plus refunds if oversubscribed). If the raise is successful, the program creates two liquidity pools, and transfers the remaining USDC to the project’s treasury.

Instructions Covered

The launchpad_v7 program contains nine instructions, but this document will only cover the following instructions:

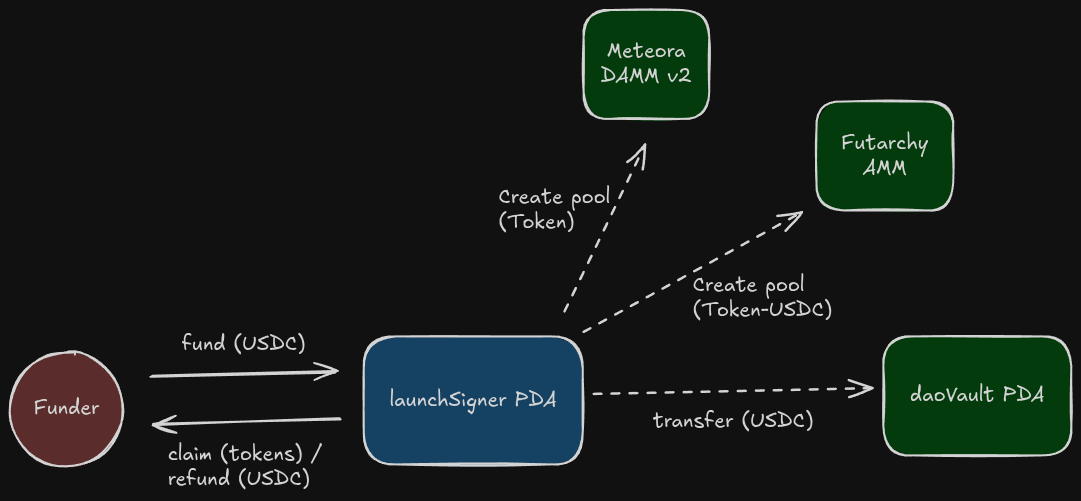

When a launch is initiated, the program creates the necessary accounts for state management and transfers. You should pay special attention to two of these accounts: launchSigner and launch.

The launchSigner account serves as the authority for fund commitments, claims, and refunds throughout the sale.

Meanwhile, the launch account stores configuration and state, tracking details like totalCommittedAmount, and secondsForLaunch. More importantly, the launch account appears at position 1 in every instruction, making it the key filter for querying a specific raise.

Program IDs

v5, v6, and v7 share the same instruction structure and all queries in this doc work across versions by including each program ID in your filter. However, the event data emitted on-chain differs slightly between versions and isn’t covered here.

How Queries Work

Each instruction in the launchpad program can be identified using Dune’s solana.instruction_calls table by filtering on:

1. Program ID (executing_account) - the launchpad program address(es)
2. 8-byte discriminator - the first 8 bytes of the instruction data, unique to each instruction type
3. Account arguments - accounts at specific positions identify the launch, funder, and other relevant addresses

Instruction Breakdown

initializeLaunch

The initializeLaunch instruction stages the launch onchain by minting the token and creating the necessary accounts for state management and transfers.

Discriminator:

WHERE bytearray_substring(data, 1, 8) = 0x5ac9dc8e70fd640d

Account Positions:

Instruction Data:

Decoded:

-- minimumRaiseAmount (bytes 9-16, u64)
bytearray_to_uint256(bytearray_reverse(bytearray_substring(data, 9, 8))) / 1e6 AS minimum_raise_amount

-- monthlySpendingLimitAmount (bytes 17-24, u64)
bytearray_to_uint256(bytearray_reverse(bytearray_substring(data, 17, 8))) / 1e6 AS monthly_spending_limit

-- performancePackageTokenAmount (bytes 224-231, u64)
bytearray_to_uint256(bytearray_reverse(bytearray_substring(data, 224, 8))) / 1e6 AS performance_package_token_amount

-- monthsUntilInsidersCanUnlock (byte 232, u8 - single byte, no reverse needed)
bytearray_to_uint256(bytearray_substring(data, 232, 1)) AS months_until_insiders_can_unlock

Example: https://solscan.io/tx/2fbjgAiRnGShdmtkEc6UTA3EzXsuSk7omtu499F9vPE3M8rEo9ux6HHN7CriXTN554wpnU2aHpxedJTLcq6VQJWQ https://solscan.io/tx/3WsHz8iCgeq4VLapPtJGyyccSiPPpc4BYRc4g5GKNQAnEVzRGu1hjuwR4ujBbBXLQLtx3aEW4vzrnuhXxy1S2pPs

Fund

When a user commits USDC to a raise, they call the fund instruction.

Discriminator:

WHERE bytearray_substring(data, 1, 8) = 0xdabc6fdd9871ae07

Account Positions:

Instruction Data:

Decoded:

bytearray_to_uint256(bytearray_reverse(bytearray_substring(data, 9, 8))) / 1e6 AS usdc_amount

Example: Transaction Ty9tEwqASApmCLWodJkkoS5bEREp9VggTniVqGU4X769tvSHth6165qPzSD3xcg2HJSzercLS2vYAAuLbMhByoo

Complete Launch

Once a raise succeeds, the completeLaunch instruction signals the conclusion of a raise, creates liquidity pools on Futarchy AMM and Meteora DAMM v2, and seeds the project’s treasury (Squads Multisig Vault).

Discriminator:

WHERE bytearray_substring(data, 1, 8) = 0x76cffa822c94fbed

Account Positions:

Claim

When a raise completes, the claim instruction is triggered to send tokens to participants’ wallets.

Discriminator:

WHERE bytearray_substring(data, 1, 8) = 0x3ec6d6c1d59f6cd2

Account Positions:

Instruction Data:

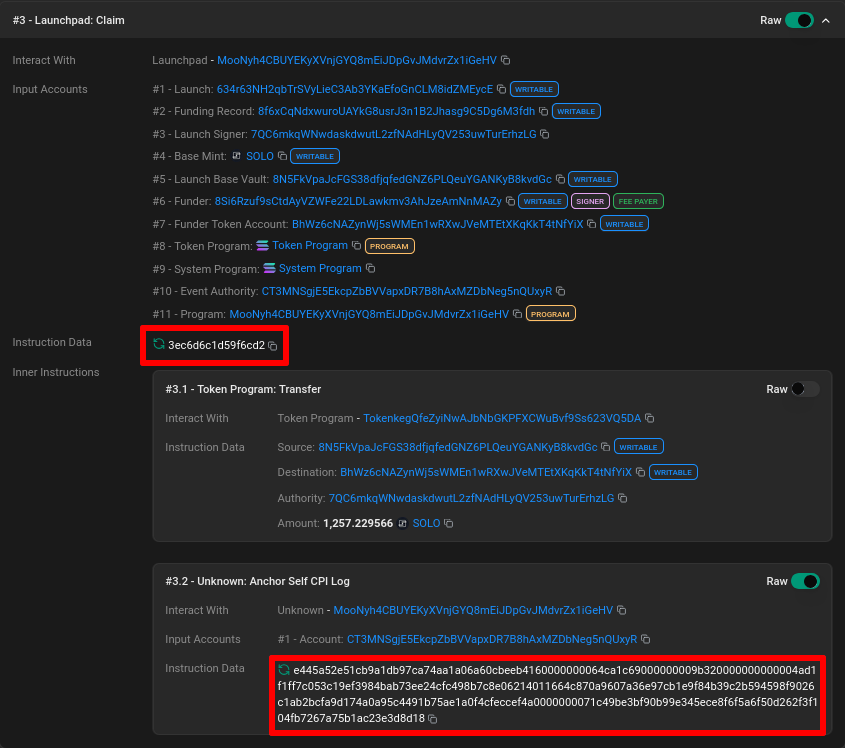

The claim value is located in the second inner instruction’s data payload. You can filter these inner instructions using their 8-byte discriminator.

Discriminator for claim inner instruction:

Claimed token amount:

Decoded:

To query claim instructions, create two CTEs:

1. Capture claim instructions by filtering on discriminator 3ec6d6c1d59f6cd2
2. Capture inner instructions containing the token amount by filtering on discriminator e445a52e51cb9a1d

Join on tx_id and outer_instruction_index to match events to their parent instructions.

Here’s an example forked from @adam_tehc:

https://dune.com/queries/6529959?sidebar=none

Example: Transaction 2aFDEAGW8gRTFBks8pf56ENibg4HQbSYev4enw4rqcaHUiDMLV4SL3REPFK4zYiLRQngCLKsYXvRSzdQvChSqTYG

Refund

When a raise is oversubscribed, the refund instruction returns excess USDC to participants.

Discriminator:

WHERE bytearray_substring(data, 1, 8) = 0x0260b7fb3fd02e2e

Account Positions:

Instruction Data:

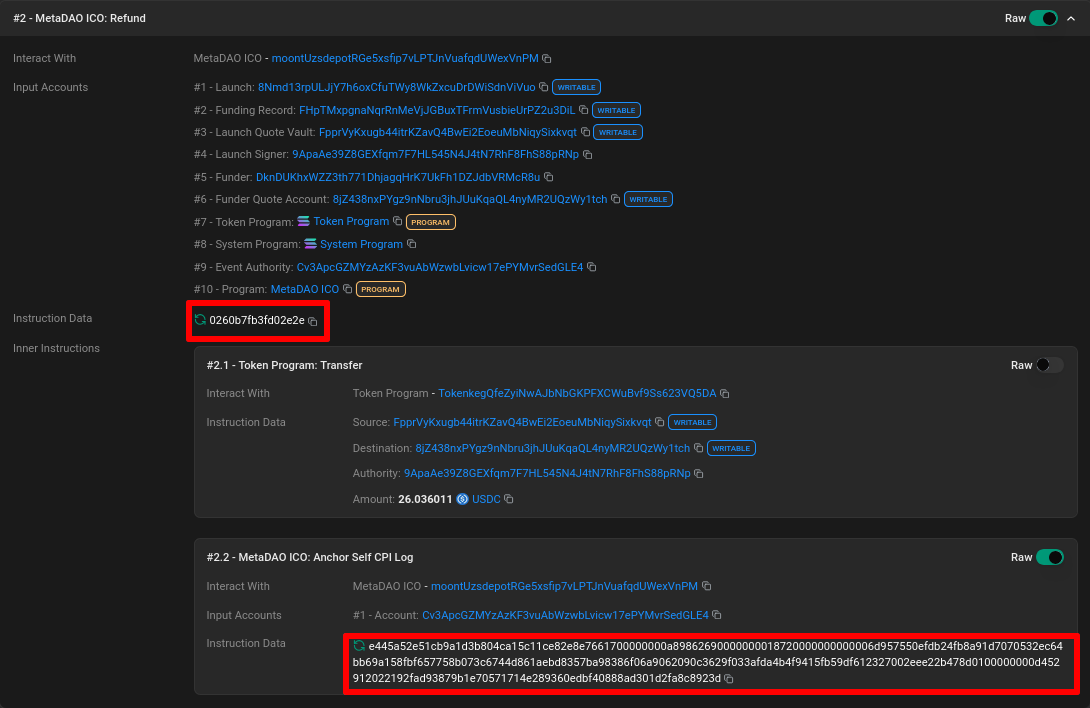

The refunded value is located in the second inner instruction’s data payload. You can filter these inner instructions using the data’s 8-byte discriminator.

Discriminator for inner instruction:

Refunded USDC value:

Decoded:

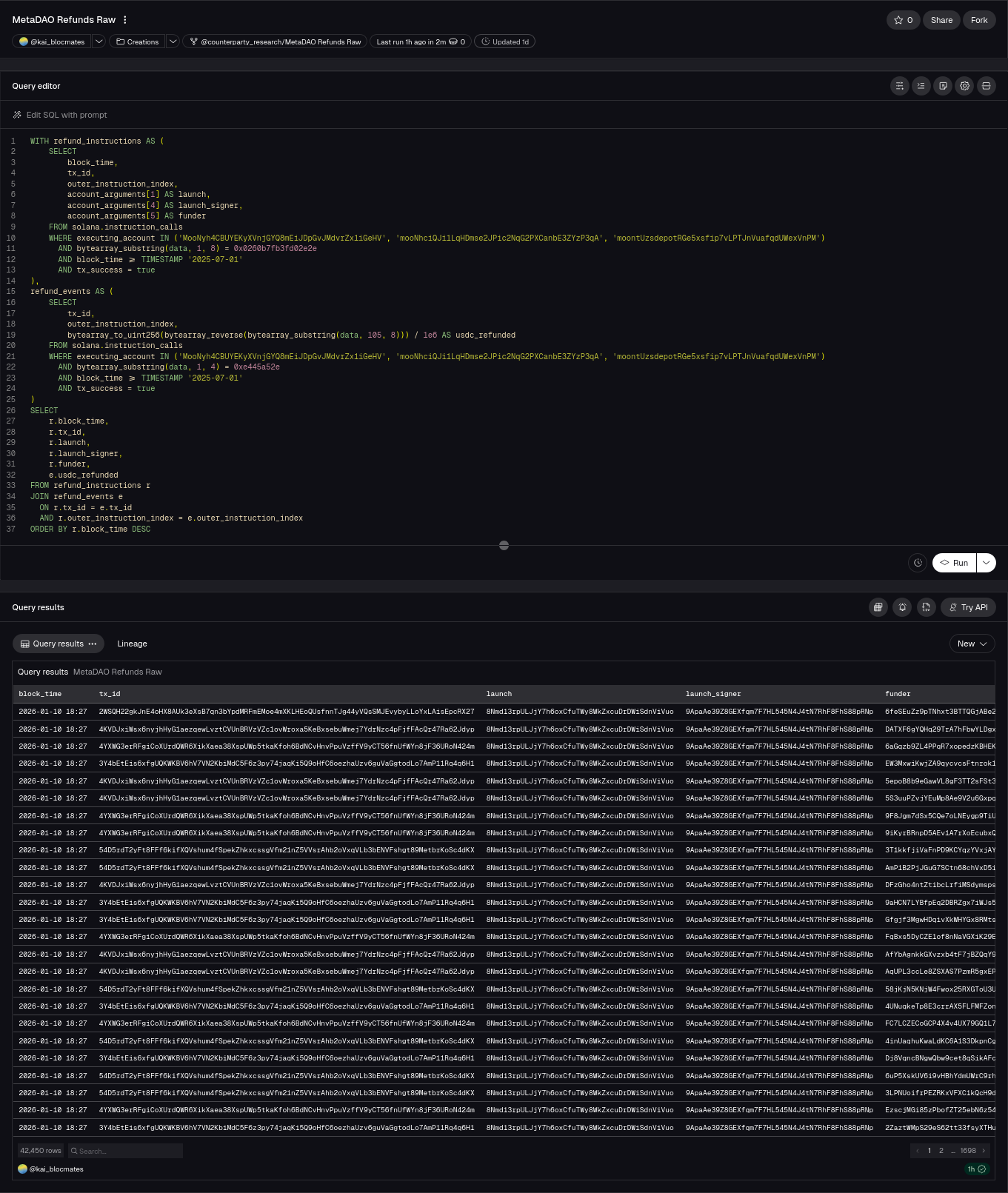

To query refund instructions, create two CTEs:

1. Capture refund instructions by filtering on discriminator 0260b7fb3fd02e2e
2. Capture inner instructions containing the token amount by filtering on discriminator e445a52e51cb9a1d

Join on tx_id and outer_instruction_index to match events to their parent instructions.

Example: Transaction zwtWBrKobmdpY5ZPW5vdLyd2KFByyipYdij8jtB8g8V7CgTXzq5DQBExbqujQQhd8vCrBJmvMDyja5NaR9naxuH

Transaction zdrYEdQQrP2C8XDGkY8M9LgNLLUX54yFJGWVoMPaxWMYJBN5tRrDagDzaF6ZdP7raYmLjm7N5i8Nug9VamVwbnR

I compiled important accounts for each project so you don’t have to worry about sluething:
